40LBS Thrust Transom Mount Saltwater Trolling Motor, Electric Trolling Motor 12-Volt Boat Motor w/LED Battery Indicator, 30in Shaft Electric Outboard Boat Motor for Saltwater, Kayak, Fishing Boat

Specification Model: L40 Speed Control: F5-R2 Motor Type: Brush Motor Rated Voltage(V): 12 Rated Speed(R/min): 1700 Rated Current(A): 34 Rated Power(W): 408 Control Handle: Retractable Maximum Speed(km/h): 6 Noise: 50db Ultimate Thrust: 300kg/661 lbs Battery Model: 12V 100A Batteries Net Weight: 7.8kg/17.2lbs Gross Weight: 9.3kg /20.5lbs Propeller Model: 3 Leaves, 7.6*22.9cm/3*9in Rod Length: 76cm/30inch Pacakge Size: 102*41*16cm (40.16*16.14*6.30inch) Installation 1. Tear off the sticker at the spring on the handle. 2. Take out the handle, and align the handle with the interface at the inner shell of the handle. 3. Press the handle spring with one hand and push the handle in with the other hand. After a crunching sound is heard, the handle is installed. 4. Take out the cylindrical card pin and insert it into the round hole of the drive rod (note that the length of both ends needs to be consistent). 5. Align the back of the propeller with the card slot and the card pin horizontally, and then tap into the propeller with force. 6. Put in the card flap, then screw the nut to complete the installation. 7. Take the fins out of the box and insert them into the fin slot. 8. Put the included screws into the screw holes of the fins and put the nuts into the other end. Hold them down. 9. Then tighten the screws with the Phillips screwdriver. Package Included 1*Trolling Motor 1*Power Propeller 1* Circuit Breaker Protector 1*Battery Clamp 1 Set of Screws 1*English Manual

• Strong Durability: The fishing motor is made of pure copper, which has excellent conductivity, thermal conductivity, ductility, and corrosion resistance. The use of a pure copper motor for fishing can overcome huge water resistance, improve driving speed, and enhance efficiency.
• No Deformation: The suspension bracket is made of high-strength aluminum alloy, which ensures that the bracket will not deform during repeated disassembly and installation. The main pole is made of aluminum. Its lightweight design will not increase the overall weight and driving difficulty of your boat.
• Fin Streamline Design: This design can protect the high-speed propeller when it collides with underwater objects. The propeller is designed using a multidimensional optimization iterative method to improve propulsion efficiency and reduce propeller losses.
• Adjustable Gears: The fixed tiller has 5 forward gears and 3 reverse gears. During the driving process, you can smoothly switch speeds and change directions. Its depth and angle can be freely adjusted according to the actual situation and your special needs.

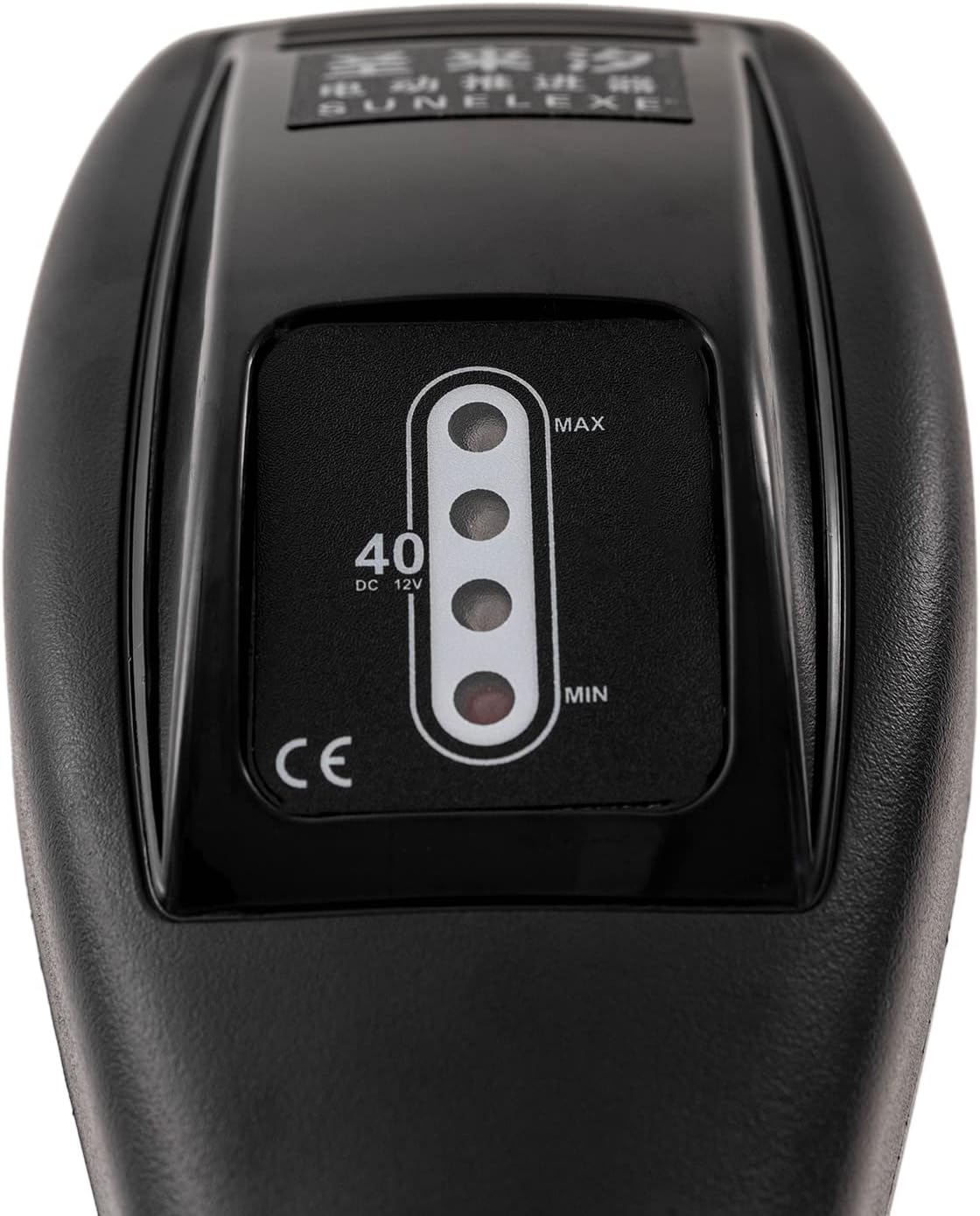

• Real Time Power Monitoring: The top of the thruster displays the battery level in real-time, allowing you to check the power status at any time and prepare for charging in advance to avoid running out of power halfway. A fishing motor with overload, short circuit, and undervoltage protection settings can protect the wiring and power supply. The towing motor is suitable for various small boats, such as fishing boats, small boats, and inflatable boats.
